ELWOOD W-SERIES
All Stainless Steel Servo Motors





Elwood's all stainless steel W-Series servo motors are designed for demanding wash down evironments. Precision machined components and smooth finishes provide a minimum of cracks and crevices in the 304 stainless steel exterior.

SEALING: W-Series motors are sealed for ingress protection (IP). Teflon or viton shaft seals help prevent liquid ingress at the front flange. O-rings are used throughout the motor to seal housing joints. IP68 cable glands eliminate ingress at the cable exits.

FEEDBACK: W-Series motors come standard with incremental encoder. Absolute (single or multi-turn) or resolver feedback is available as an option. Additionally, Elwood will implement alternate feedback types to suit your control scheme (where possible).

ROCKWELL LEGACY REPLACEMENT: Elwood's W-Series motors also directly replace W-Series motors for Rockwell Automation/Allen-Bradly. Elwood's W-Series motors are form, fit, and function replacements for the originals. This includes windings, mounting, connectors and feedback that are exactly the same as the original motors. No hardware or software changes are necessary when installing Elwood motors to replace Rockwell Automation motors.

Standard Features:
• All 304 Stainless Steel Exterior
• Round Body / Mounting Flange
• Absolute Minimum Cracks / Crevices
• Laser Etched Motor Data
• Zero-Maintenance Shaft Seal (Teflon or Viton)
• Corrosion Resistant from 1 to 12 pH
• 3" and 4" Frame Sizes
• 1.7Nm To 7.2Nm Torque Range
• IP66 Sealing (High Pressure Wash Down)
• 230V and 460V Windings
• Encoder Feedback

Optional Features:
• NPT Port for Positive Low-Pressure Purge
• Custom Flanges
• Custom Shaft
• Holding Brake (24VDC Coil, Spring-Set)
• Absolute Feedback (single or multi-turn)
• Resolver Feedback (multiple versions to suit your controls)

Typical Applications:
Elwood's W-Series All Stainless Steel Servo Motors are designed and well-suited for a wide range of applications in harsh environments.

• Food Processing
• Food Packaging
• Beverage Processing
• Beverage Bottling
• Dairy Processing
• High Pressure Washdown
• Caustic Washdown
• Pharmaceutical Applications
• High-Hygienic Applications
• Custom, Application Specific Solutions

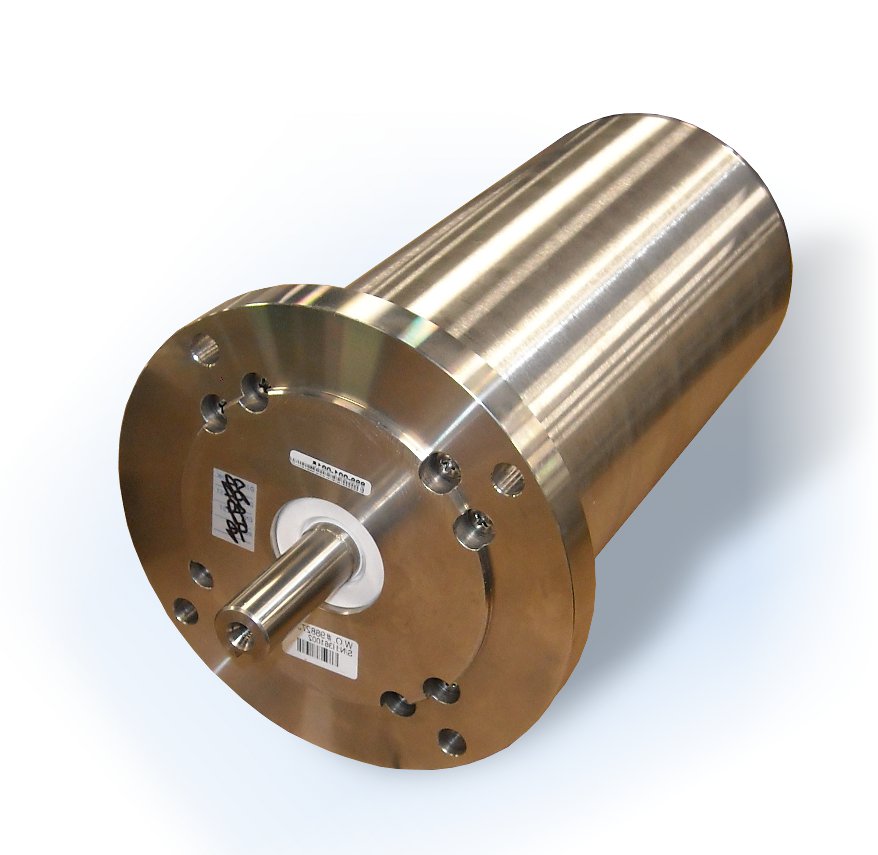

W-Series All Stainless Steel Servo Motors

W-SERIES LINKS:
W-Series Pricelist (html)
W-Series Pricelist (pdf)
W-Series Brochure

W-Series Specifications

REBUILD & REPAIR PARTS:
W-Series Rebuild Service

ENCOMPASS PRODUCTS:
Encompass Products Cut Sheet


W-SERIES MODEL NUMBERS:
Catalog Number / Part Number (Contact Elwood for Addtional Models and Customs)
W-3016-N-H00AA (W3016NH00AA)
W-3016-N-H00AB (W3016NH00AB) W-B330G-H00AB (WB330GH00AB)
W-4030-M-H00AA (W4030MH00AA)
W-4030-M-H00AB (W4030MH00AB) W-B330G-H04AB (WB330GH04AB)
W-4030-P-H00AA (W4030PH00AA)
W-4030-P-H00AB (W4030PH00AB) W-B420G-H00AB (WB420GH00AB)
W-4050-P-H00AA (W4050PH00AA)
W-4050-P-H00AB (W4050PH00AB) W-B440G-H00AA (WB440GH00AA)
W-4075-R-H00AA (W4075RH00AA) W-B440G-H00AB (WB440GH00AB)
W-4075-R-H00AB (W4075RH00AB) W-B440G-H04AA (WB440GH04AA)
  W-B440G-H04AB (WB440GH04AB)
  W-B460G-H00AA (WB460GH00AA)
  W-B460G-H00AB (WB460GH00AB)
  W-B460G-H04AA (WB460G-H04AA)
  W-B460G-H04AB (WB460G-H04AB)
